Pipe Clips

Standard pipe clips are usually either 2 bolt clips or 3 bolt clips. Basically they are two halves that are bolted together around a pipe.

2 Bolt Pipe Clip

A 2 bolt pipe clip comes in two halves, and as can be seen in the diagram, has two bolts, one either side of the pipe to join the two halves together

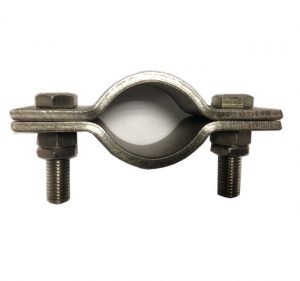

Standard 2 Bolt Pipe Clip

Standard 2 Bolt Pipe Clip

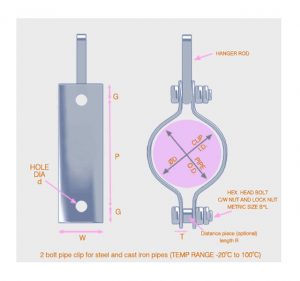

Standard 2 Bolt Pipe Clip Diagram

Standard 2 Bolt Pipe Clip Diagram

These are typically used with a hanger rod to suspend the pipe. However they can also be used with a shoe or base plate.

Pipe Saddle Pipe Saddle Pipe Saddle


3 Bolt Pipe Clip

Like the 2 bolt pipe clip, the 3 bolt pipe clip comes in two halves, as can be seen in the diagram. However it has three bolts, one either side of the pipe, and one towards the end of an extended arm to join the two halves together

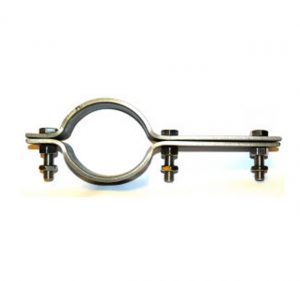

Standard 3 Bolt Pipe Clip

Standard 3 Bolt Pipe Clip

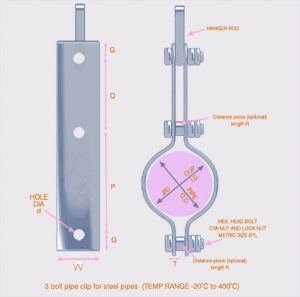

Standard 3 Bolt Pipe Clip Diagram

Standard 3 Bolt Pipe Clip Diagram

These would often be used where the pipe is perhaps insulated, so that the hanger rod would be outside of the insulation


Traditionally pipe clips were referenced by the size of the pipe they were clamping. So for example an engineer would ask for a pipe clip for a 50 nominal bore pipe. No reference to the size of the clip, thickness of the material, size of the holes etc.

Graphskill Sums

Graphskill Sums (GSUMS) is the new way of labelling pipe clips (Read More about GSUMS)

Graphskill SUMS : 2-bolt pipe clipInside Diameter=D

Clip Width=W

Clip Thickness=T

Hole Centres=P

Hole centre to Edge=G

Gap Between halves=R

Bolt Diameter Size=M




So the code for the pipe clamp becomes: Graphskill SUMS=CLIPS/MATERIAL/D-W*T-P-G-R-M

Example : CLIPS/T304/224-65*12-320-36-12-M24

This clearly defines the physical dimensions of the clip.




You can see Graphskill standard range of pipe clips here: Pipe Clips

You can design your own 2 bolt pipe clip and get a guide price here: Bespoke 2 bolt Pipe Clips
