1205 Series Stainless Steel Pipe Support System

Graphskill have a patented, modular stainless steel pipe support system – the 1205 series. It was developed to accommodate the many different types of pipe support designs which have proven expensive to adopt in stainless steel. The unique design enables a multitude of design options all based on the Series 1205 bossed clip

The Series 1205 can be used to clamp, guide or hang pipes in position with a minimum of basic components

Advantages of the Series 1205 system

1205 Series Modular Pipe Clamps

1205 Series Modular Pipe Clamps

  • Availability – Stainless steel ex stock, non-standard within 24 hours
  • One basic component to for many supporting arrangements
  • Versatile
  • Space and cost saving
  • No Dissimilar metal considerations
  • Easy insulation
  • Load distribution
  • No limitations on clip manufacture size
  • Matrix development – single or multiple pipe lines can be easily accommodated
1205 Series Bossed Pipe Clamp Munsen Style)

1205 Series Bossed Pipe Clamp Munsen Style)

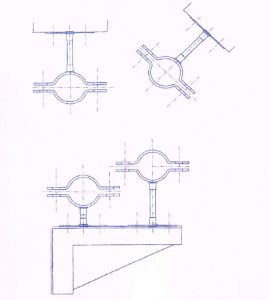

 The 1205 can be used :

  • as anchors where it is necessary to hold the pipe in all directions
  • as guides where it is undesirable to restrict longitudinal movement
  • in hanging applications
  • in matrix formation

Bossed Pipe Clamp

What is a bossed pipe clamp? Sometimes called Munsen rings, bossed pipe clamps are very similar to a two bolt pipe clip, but with threaded boss attached. The threaded boss allows the pipe clamp to be fixed to a base plate via a length of studding.

The added advantage is the matrix – connect multiple clamps together in different orientations allows for great flexibility.

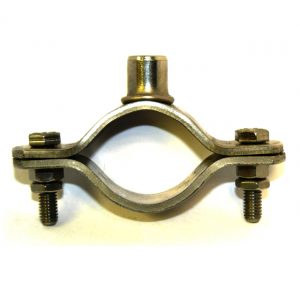

Bossed pipe clamp

Bossed pipe clamp

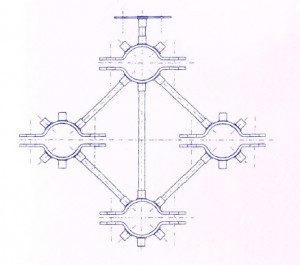

Bossed pipe clamp matrix solution

Bossed pipe clamp matrix solution

The Graphskill Series 1205 (Patent No. 824062971 Stainless Steel Pipe Support System

The series 1205 pipe support system has been developed to accommodate the many different types of pipe support designs which have proven expensive to adopt in stainless steel. The unique design enables a multitude of design options all based on the Series 1205 bossed clip.

The Series 1205 clip can be used to clamp, guide or hang pipes in position with a minimum of basic components. Because these components can be used in a variety of ways, a complicated support system can be built with the minimum of technical design input.

A matrix of 1205 bossed clips can be built, hanging pipes from each other.


You can see our range of bossed pipe clips here: Bossed Pipe Clips
